Whistler Desktop Decodes DMR/MotoTRBO Voice Scan

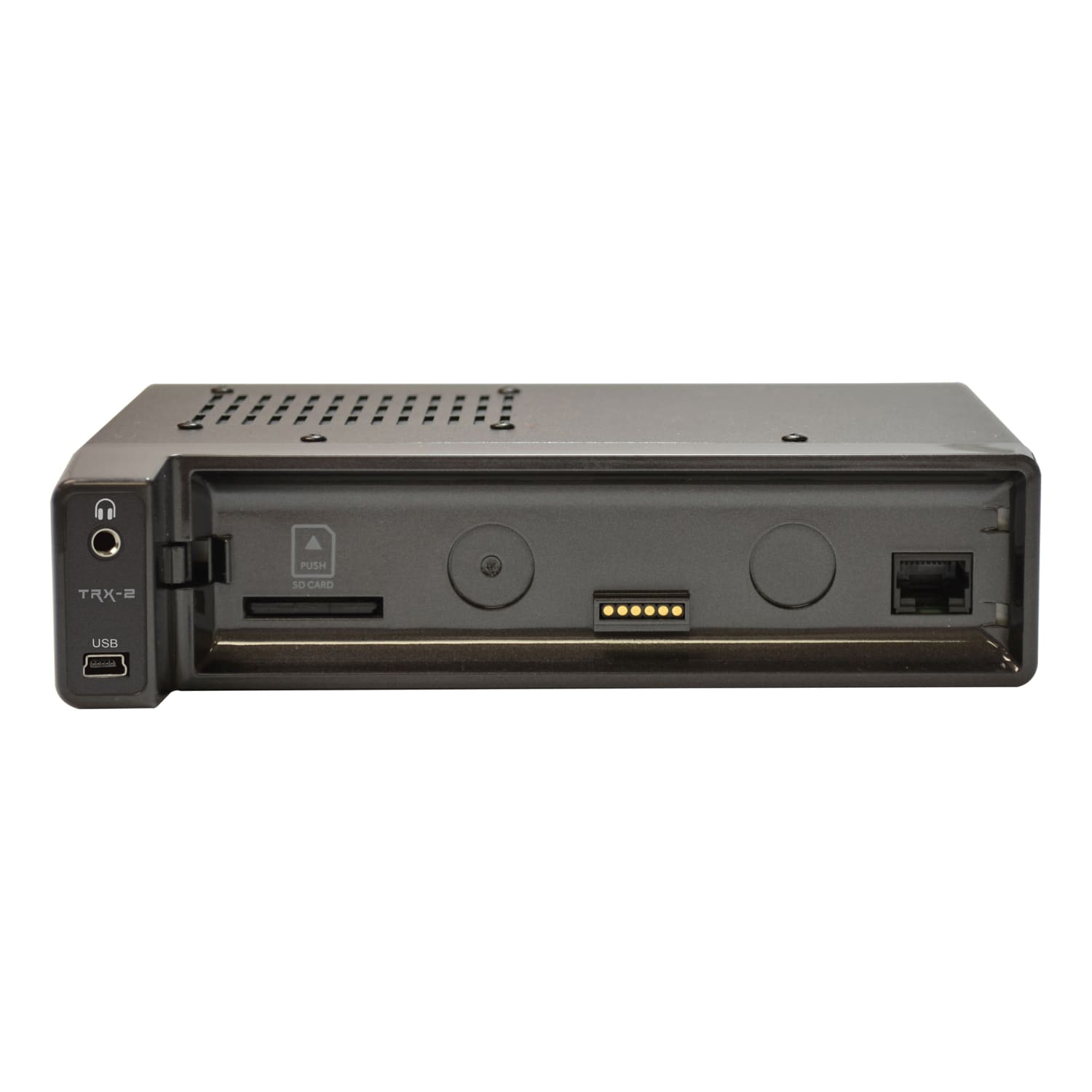

The Whistler TRX-2 exemplifies Whistlers commitment to the scanner market by bringing new capabilities and transmission modes to its customers. This multi-system adaptive digital trunking scanner supports Motorola P25 Phase I, X2-TDMA, Phase II and DMR making it capable of monitoring the following unencrypted channels/systems: Conventional DMR (Entered as a DMR trunked system), Hytera XPT, MotoTRBO Capacity Plus, MotoTRBO Connect Plus, and MotoTRBO Linked Cap Plus systems.

• The TRX-2 allows the user the ability to group their stored objects using up to 200 Scan lists plus a special Skywarn scan list. Objects can be mapped to as many Scan lists as desired, giving you complete flexibility for grouping objects and selecting groups in any combination for scanning.
• Programmable audible alarms can be configured to sound when certain Scannable Objects are active. Can be used in conjunction with, or separately from, the Alert LED described above.
• Record received audio from selected objects and searches to the Micro SD card. Replay recorded audio using a powerful built-in playback system or transfer to PC for playback and archiving. Record up to 50 hours of audio on the 2 GB microSDr
• Date and time stamp recorded audio files, and alarm clock” function allows you to program the scanner to wake up and start scanning at a specific time each day.
• A built-in Discriminator Output provides raw discriminator signal to third party signal decoding software without risky hardware modifications.
• Predefined service search ranges make it easy to find activity in your area.
• A simplified keypad and display with familiar Scan, Pause, Skip and Navigation controls make it easy for you to use your TRX-2. Behind the scenes, Whistler”s exclusive Object Oriented database runs the show, with support for millions of stored objects, limited only by MicroSD card capacity.
• With the expanded V-Scanner II (VS-II) storage system, you can use the TRX-2 PC Application to save up to 200 V-Scanner configurations on the MicroSD Card, which can be recalled at any time in the field using the radio”s keypad.
• Industry-standard Composite Device USB interface with USB Mass Storage Device (MSD) and Serial Data (CDC) support. Access the MicroSD card without removing it from the radio, stream decoded Control Channel data and upgrade your radio”s firmware over USB. Mini USB cable included.
• The TRX-2 detects and masks digital voice audio, and decodes RadioID/TalkgroupID data embedded in voice packets.
• Uses an industry-standard MicroSD card to store the RadioReference data library and all of your programming – capacity for millions of stored objects! Supports cards up to 32 GB
• Scan Sets expand the functionality of Scan lists by allowing you to define different combinations of enabled Scanlists as Scan Sets, then you can select one or more Scan Sets for scanning using a simple menu system. With Scan lists and Scan Sets you have unlimited possibilities for grouping, enabling and disabling objects for scanning.
• Simple Zip Code programming.
• Preloaded USA/Canada MicroSD card included.
• Easy updating via Internet.
• User upgradable CPU firmware.
• Spectrum Sweeper.
• Clock / Calendar.
• APCO P25 Digital Phase I & II.
• Compact, modern case design.
• Preloaded USA/Canada MicroSD card included.
• Store Favorites Scan List
• CTCSS and DCS subaudible decoder.
• Dedicated SKYWARN/Weather button.
• Dedicated SKYWARN/Weather button.
• IF Discriminator Out.
• Tuning Steps: 2.5, 3.125, 5, 6.25, 7.5, 8.33, 10, 12.5 ad 25 kHz.
